Quantity Available: 51
| Qty | Price |
|---|---|
| 5 | $24.00 |
| 10 | $23.00 |

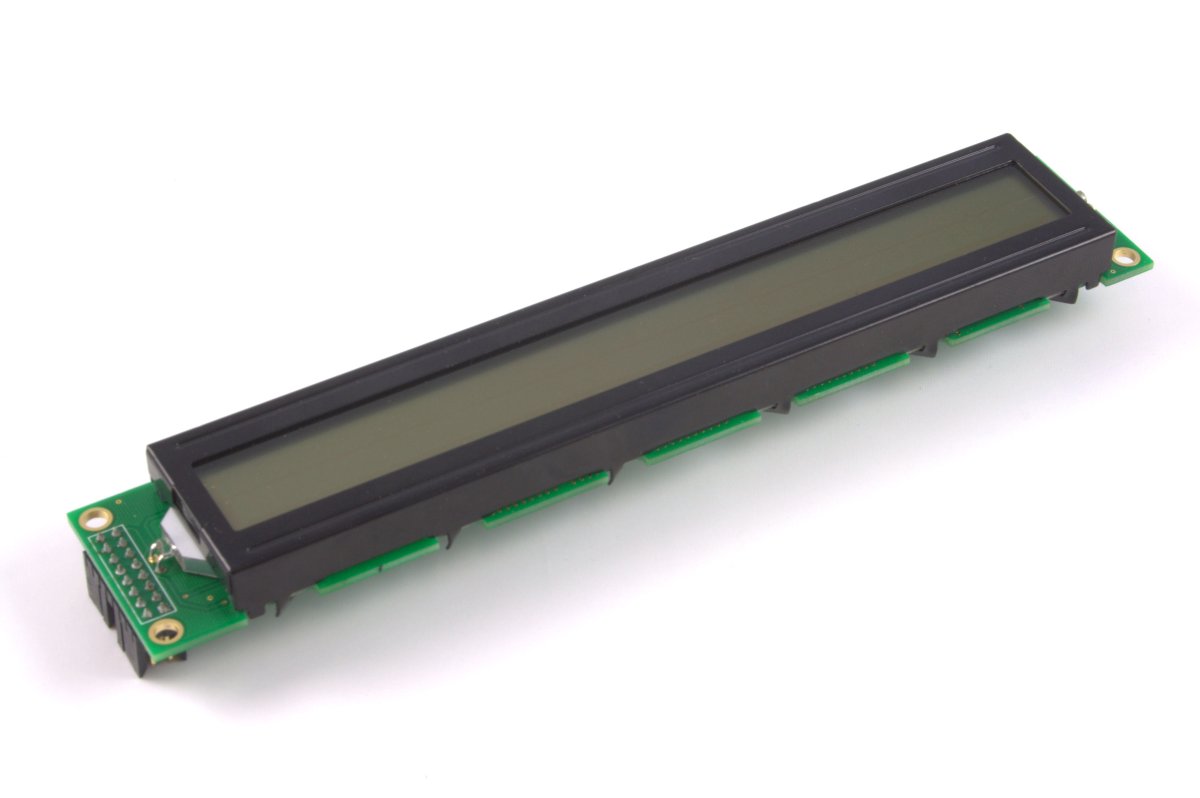

The 3653 is a 2 lines x 40 characters LCD module with a viewing area of 152.5 x 16.5mm. From software, the LCD contrast, and the LED backlight brightness can be adjusted.

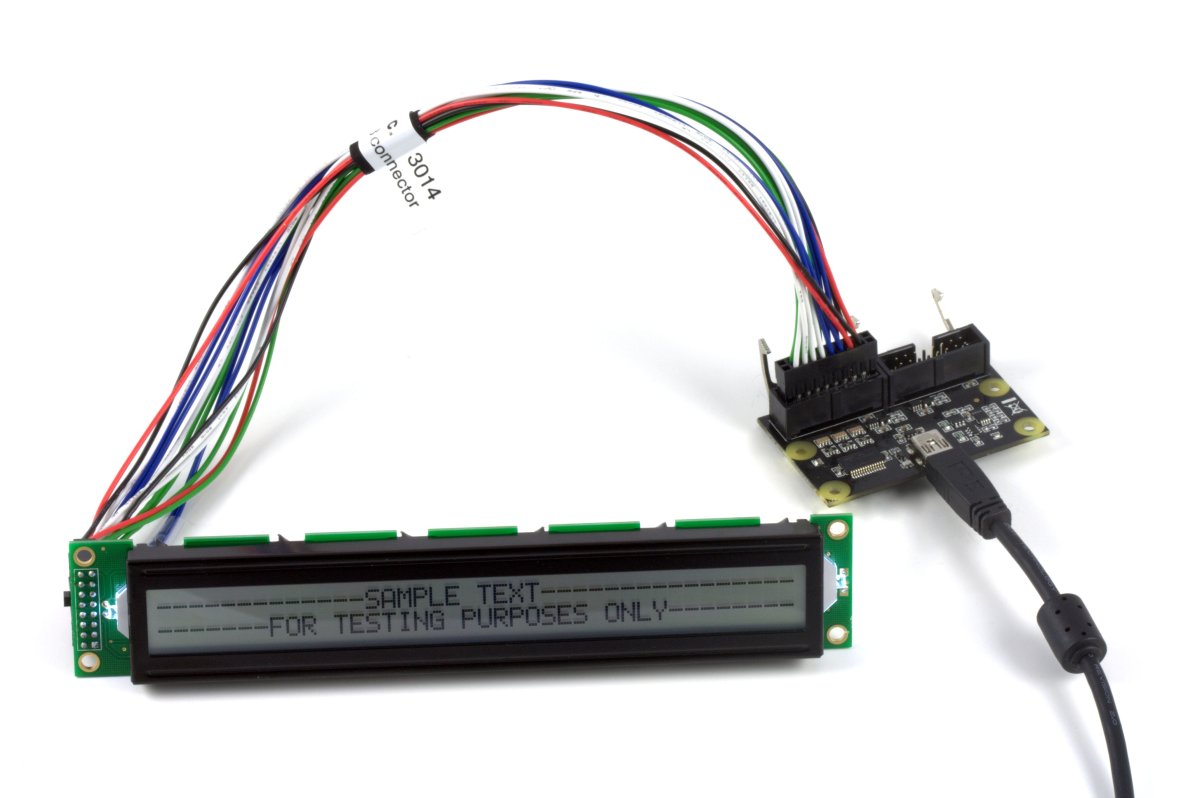

This LCD connects to a TextLCD adapter using the included cable. See the Connection & Compatibility tab for details.
| LCD Screen | |
|---|---|
| Dots per Character | 5 x 8 |
| Character Width | 3.2 mm |
| Number of Rows | 2 |
| Characters per Row | 40 |
| Backlight Current Consumption Max | 300 mA |
| Board Properties | |
| Controlled By | LCD Adapter |
| Current Consumption Max | 3 mA |
| Supply Voltage | 5 V DC |
| Operating Temperature Min | -20 °C |
| Operating Temperature Max | 70 °C |
| Customs Information | |
| Canadian HS Export Code | 8531.20.00 |
| American HTS Import Code | 8531.20.00.20 |
| Country of Origin | CN (China) |
This LCD screen can be controlled by one of our TextLCD adapter boards. The cable included with this screen will allow you to easily connect it to the following boards:
| Product | |
|---|---|
| Part Number | Price |
 PhidgetTextLCD Adapter
|
$30.00 |
This LCD screen comes with a customized cable that connects it to a Phidgets TextLCD interface. If you need a replacement cable for this screen, you can find one in the table below:
| Product | Physical Properties | ||||
|---|---|---|---|---|---|
| Part Number | Price | Connector A | Connector B | Cable Length | Cable Gauge |
 LCD cable (2x8 connector)
|
$3.50 | Amphenol Mini PV 65863 | Amphenol Mini PV 65863 | 300 mm | 26 AWG |
| Product | LCD Screen | |||
|---|---|---|---|---|
| Part Number | Price | Number of Rows | Characters per Row | Character Width |
 LCD Screen 2x20 (12.7mm Characters)
|
$25.00 | 2 | 20 | 5.9 mm |
 LCD Screen 2x20 (5.5mm Characters)
|
$18.00 | 2 | 20 | 3.2 mm |
 LCD Screen 2x40 (5.5mm Characters)
|
$25.00 | 2 | 40 | 3.2 mm |
 LCD Screen 4x20 (4.75mm Characters)
|
$20.00 | 4 | 20 | 3 mm |
 LCD Screen 4x40 (4.89mm Characters)
|
$35.00 | 4 | 40 | 2.8 mm |
