This linear encoder converts movement along its 300mm of travel into a quadrature signal that is readable by any of our encoder interfaces. It has an index channel that triggers every 5cm to aid in startup calibration.

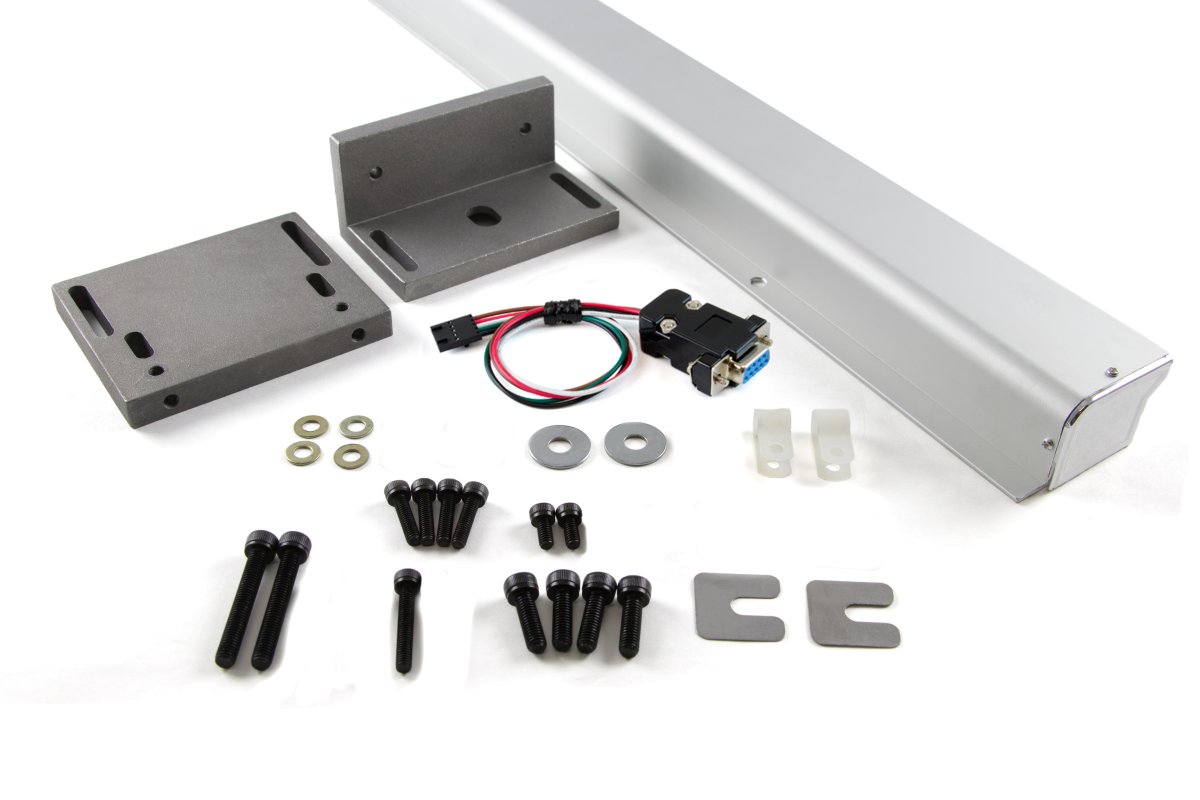

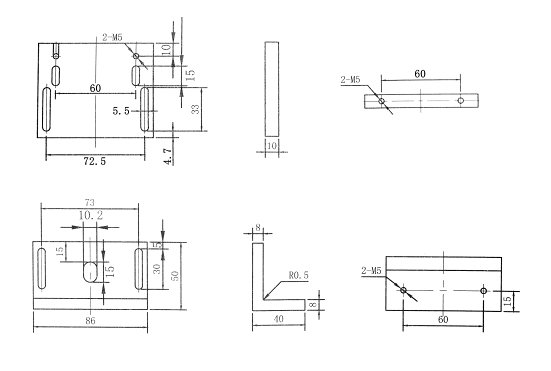

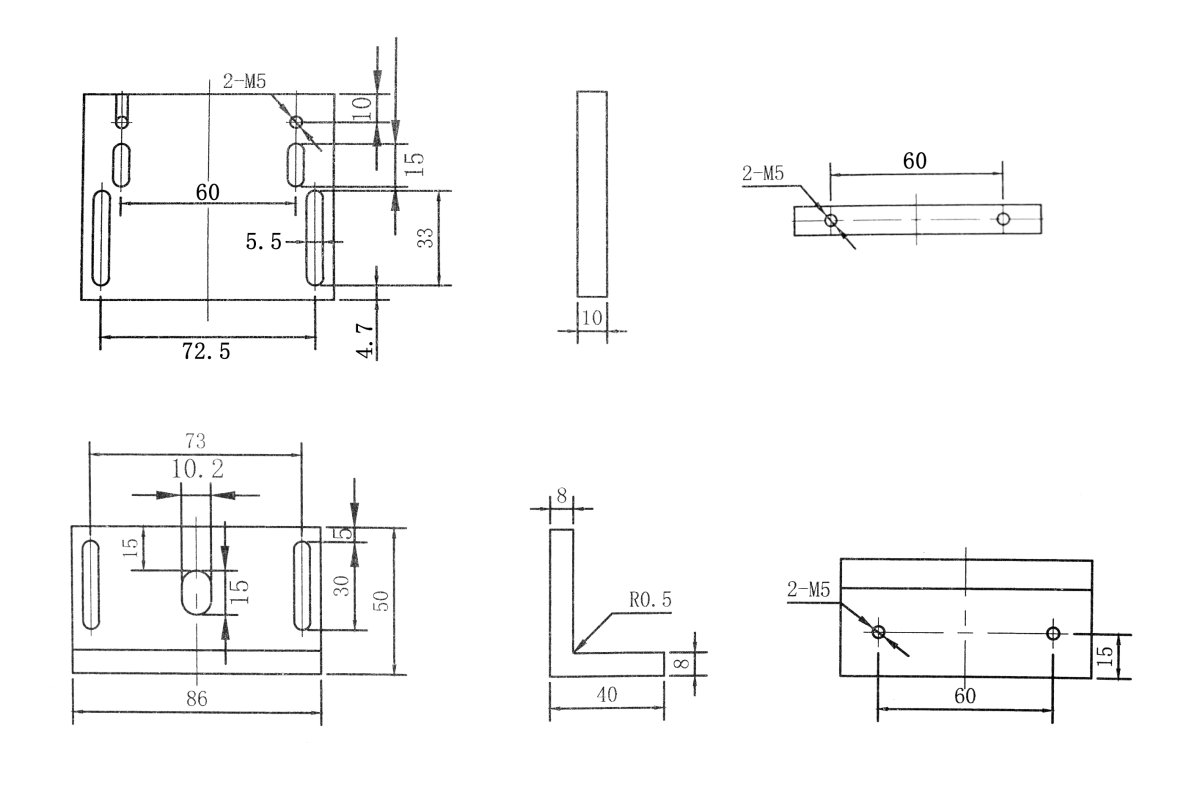

Included hardware: Phidget encoder cable to DB9 adapter, Debris shielding, Two mounting plates, Washers (2x large, 4x medium, 6x small), M5 Screws (2x 40mm, 2x 30mm, 4x 20mm), M4 Screws (4x 20mm, 5x 12mm), 4x Metal mounting shim, 3x Plastic cable clip.
This linear encoder connects directly to any of our encoder interfaces:
| Product | Encoder Interface | ||
|---|---|---|---|
| Part Number | Price | Number of Encoder Inputs | Count Rate Max |
 Quadrature Encoder Phidget
|
$15.00 | 1 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed
|
$50.00 | 1 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed 4-Input
|
$75.00 | 4 | 1E+06 pulses/s |
 PhidgetEncoder HighSpeed
|
$40.00 | 1 | 2E+06 pulses/s |
 PhidgetEncoder HighSpeed 4-Input
|
$65.00 | 4 | 1E+06 pulses/s |
| Encoder Properties | |
|---|---|
| Length Resolution | 5 μm/pulse |
| Electrical Properties | |
| Supply Voltage Min | 5 V DC |
| Supply Voltage Max | 5 V DC |
| Physical Properties | |
| Travel | 300 mm |
| IP Rating | IP55 |
| Maximum Speed | 1 m/s |
| Customs Information | |
| Canadian HS Export Code | 9029.10.00 |
| American HTS Import Code | 9029.10.80.00 |
| Country of Origin | CN (China) |
The DB9 connector on this encoder has the following pinout:
| Pin | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|
| Signal | NC | Gnd | NC | Shield | NC | A | Vcc | B | Index |
| Color | Black | Shielding | Yellow | Red | Green | Brown |
