Replaced by the 3270_1 and the 3531 - Optical Rotary Encoder HKT22, sold separately.

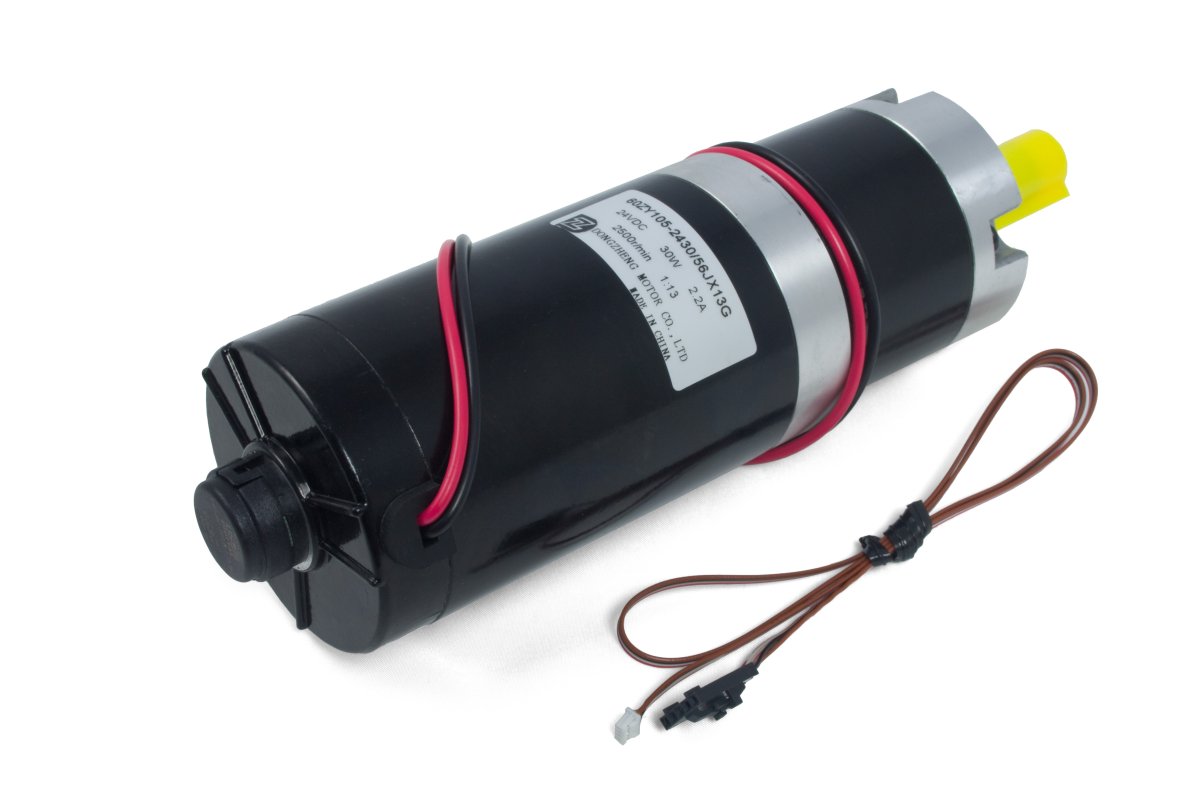

The 3270E is a 24 volt gear motor, generating 14.3 Kg-cm of torque at 192 RPM. It's a large motor that provides lots of torque, even at higher speeds.
This motor comes equipped with an E4P US Digital Encoder, which keeps track of the motor's rotation, allowing you to control your motor precisely.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
| Motor Properties | |
|---|---|
| Motor Type | DC Motor with Encoder |
| Output Power (Mechanical) | 30 W |
| Rated Speed | 192 RPM |
| Rated Torque | 14.3 kg·cm |
| Stall Torque | 95.5 kg·cm |
| Electrical Properties | |
| Rated Voltage | 24 V DC |
| Rated Current | 2.2 A |
| Stall Current | 10.8 A |
| Physical Properties | |
| Shaft Diameter | 12 mm |
| Wire Length | 300 mm |
| Weight | 1.5 kg |
| Gearbox Specifications | |
| Gearbox Type | Planetary |
| Gear Ratio | 12 24⁄25 : 1 |
| Number of Gear Trains | 2 |
| Maximum Strength of Gears | 153 kg·cm |
| Shaft Maximum Axial Load | 200 N |
| Shaft Maximum Radial Load | 100 N |
| Backlash Error | 3° |
| Encoder Specifications | |
| Encoder Resolution | 360 CPR |
| Connector Type | E4P |
| Current Consumption Min | 27 mA |
| Supply Voltage Min | 4.5 V DC |
| Supply Voltage Max | 5.5 V DC |
| Customs Information | |
| Canadian HS Export Code | 8501.10.00 |
| American HTS Import Code | 8501.10.60.60 |
| Country of Origin | CN (China) |
The 3270E DC motor connects to the 1065 - PhidgetMotorControl 1-Motor.
The mounting holes on this motor are compatible with the 3339 - Mounting Bracket (NEMA23).
