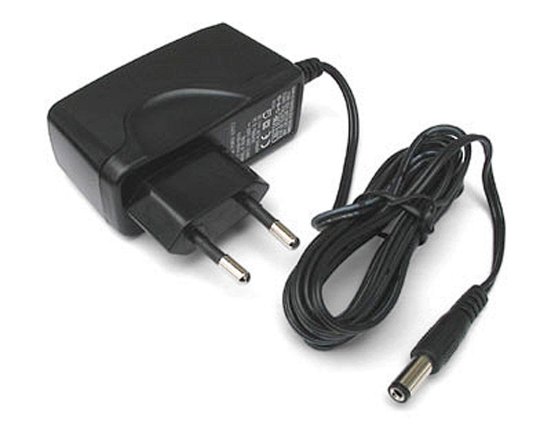

The 3010 provides efficient power at 6VDC, 1.5 Amps, 9 Watts. It is protected against over-current.
If you need a power supply with a North American type plug see the 3005 – Power Supply 6VDC 1.5Amp – US.
The power supply can be used with many Phidgets that accept an external power supply, or for projects that need a small power source.
Electrical Properties | |
---|---|
Power Supply Voltage Min | 5.7 V DC |
Power Supply Voltage Max | 6.3 V DC |
Power Supply Current | 1.5 A |
Output Power | 9 W |
AC Input Voltage Min | 100 V AC |
AC Input Voltage Max | 240 V AC |
AC Input Frequency Min | 50 Hz |
AC Input Frequency Max | 60 Hz |
Protection Circuitry | Short Circuit |
Physical Properties | |
Wall Plug Style | European |
Power Jack Hole Diameter | 5.5 mm |
Power Jack Pin Diameter | 2.1 mm |
Power Jack Polarity | Center Positive |
Operating Temperature Min | 0 °C |
Operating Temperature Max | 40 °C |
Customs Information | |
Canadian HS Export Code | 8504.40.00 |
American HTS Import Code | 8504.40.70.01 |
Country of Origin | CN (China) |
Should you exceed the power output, we also offer larger power supplies with 4 different style of plugs:
