Rotary Motion Guide
Rotary systems involve rotating mechanical parts such as motors, sprockets, and pulleys. Learn the basics about rotary motion here.
Products for USB Sensing and Control
Quantity Available: 682
| Qty | Price |
|---|---|
| 5 | $6.72 |
| 10 | $6.44 |

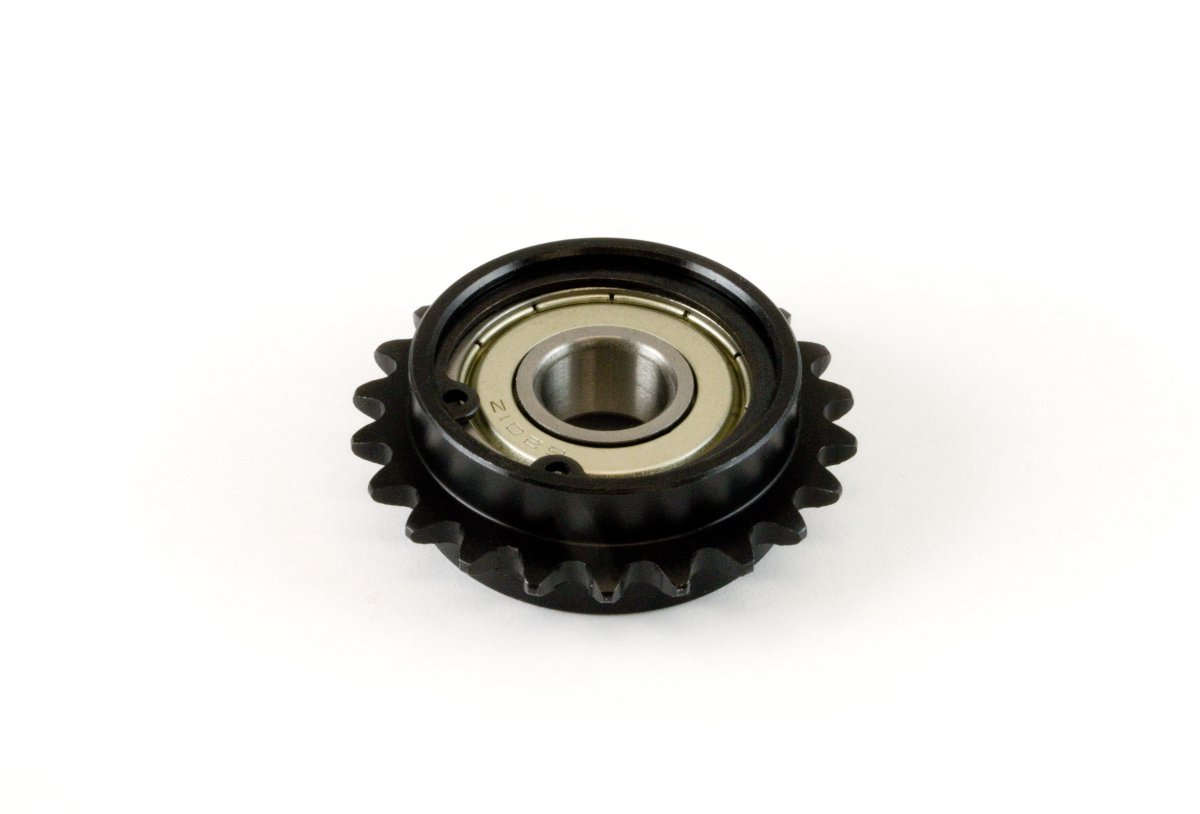

Idler sprockets are standard sprockets with an integrated bearing that causes them to spin freely. This is useful for adding tension a chain system without putting additional load on the motor. They can also be used to route chains around so they're not in the way of other parts of the system.

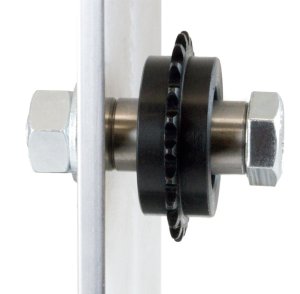

The included mounting spacers can be slid onto a bolt, one on each side of the sprocket.
The spacer only contacts the inner bore of the sprocket, so it can be securely mounted while still allowing the sprocket to spin freely.
This sprocket is compatible with series #25 chain. The amount of chain required depends on the desired distance between your two sprockets; for installation details see the Rotary Motion Guide.
| Product | |
|---|---|
| Part Number | Price |
 #25 Roller Chain
|
$5.95/Meter |
 #25 Roller Chain Link Kit
|
$1.50 |
If you're building a rotary transmission system of any kind, chances are you'll need some rotary shaft. Here's a list of rotary shaft compatible with this sprocket:
| Physical Properties | |
|---|---|
| Inner Diameter | 12 mm |
| Number of Teeth | 22 |
| Sprocket Series | # 25 |
| Customs Information | |
| Canadian HS Export Code | 8483.90.00 |
| American HTS Import Code | 8483.90.10.50 |
| Country of Origin | CN (China) |
| Product | Physical Properties | |||
|---|---|---|---|---|
| Part Number | Price | Inner Diameter | Number of Teeth | Sprocket Series |
 #25 Chain Sprocket with 8mm Bore and 10 Teeth
|
$3.00 | 8 mm | 10 | # 25 |
 #25 Chain Sprocket with 9mm Bore and 18 Teeth
|
$3.75 | 9 mm | 18 | # 25 |
 #25 Sprocket with 10mm Bore and 12 Teeth
|
$4.00 | 10 mm | 12 | # 25 |
 #25 Chain Sprocket 10mm Bore 32 Teeth 3mm Key
|
$5.00 | 10 mm | 32 | # 25 |
 #25 Chain Sprocket 10mm Bore 32 Teeth 4mm Key
|
$5.00 | 10 mm | 32 | # 25 |
 #25 Chain Sprocket with 11mm Bore and 32 Teeth
|
$5.00 | 11 mm | 32 | # 25 |
 #25 Chain Idler Sprocket 12mm Bore with Spacers
|
$7.00 | 12 mm | 22 | # 25 |
 #25 Chain Sprocket with 12mm Bore and 12 Teeth
|
$3.25 | 12 mm | 10 | # 25 |
 #25 Chain Sprocket with 12mm Bore and 18 Teeth
|
$3.75 | 12 mm | 18 | # 25 |
 #25 Chain Sprocket with 12mm Bore and 32 Teeth
|
$5.00 | 12 mm | 32 | # 25 |
 #25 Chain Sprocket with 12mm Bore and 52 Teeth
|
$8.00 | 12 mm | 52 | # 25 |
 #25 Chain Sprocket with 0.5" Bore and 12 Teeth
|
$3.50 | 1⁄2″ | 10 | # 25 |
