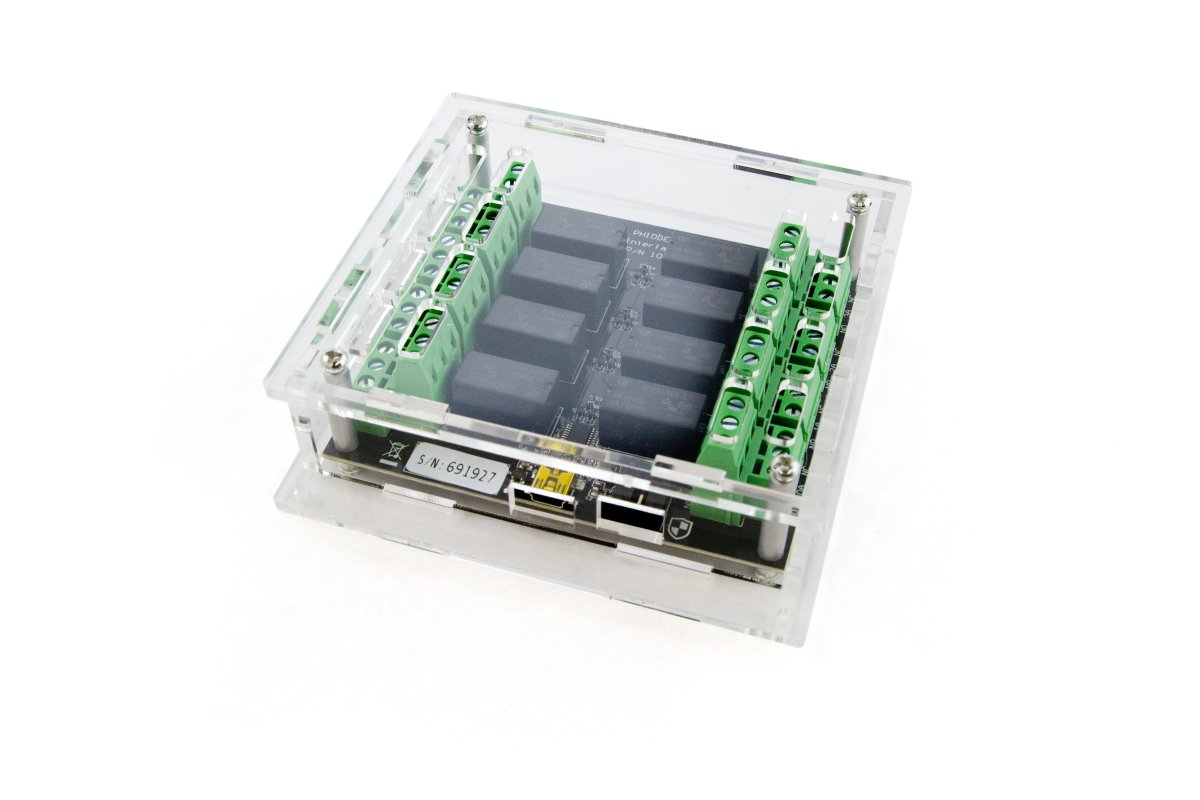

Acrylic Enclosure for the 1017

ID: 3803_3

This clear acrylic enclosure protects your Phidget and is assembled with a Phillips screwdriver.

$10.00

Quantity Available: 277

Qty Price
5 $9.50
10 $9.00
25 $8.00
50 $7.00
100 $6.50
250 $6.00
500 $5.50
1000 $5.00
50+...

This enclosure is designed to protect the 1017 - PhidgetInterfaceKit 0/0/8 while giving you access to all terminals and connectors through openings in the enclosure.

You can plug and unplug cables and access the screw terminals without having to open the enclosure.

This particular revision of the enclosure comes pre-assembled.

Be careful when tightening the mounting screws, excess tension can crack the acrylic.

Note: The Phidget board is not included with the enclosure and must be purchased separately.

Features

  • Clear acrylic enclosure protects the Phidget from damage
  • Fits the Phidget 1017_1 or 1017_2

Package Includes

  • 6 clear acrylic pieces
  • Mounting Hardware (Nuts, bolts, spacers)

Required Tools

  • Small Phillips screwdriver

Phidgets

This enclosure is desgined to fit the following Phidgets. See the "Resources" tab for assembly instructions.

Product Specifications

Physical Properties
Fits Board Revision 1 or 2
Material Clear Acrylic
Thickness 3.2 mm
IP Rating 20
Customs Information
Canadian HS Export Code 8473.30.00
American HTS Import Code 8473.30.51.00
Country of Origin CN (China)

Warning


warning Be careful when tightening the mounting screws, as too much tension could crack the acrylic.
