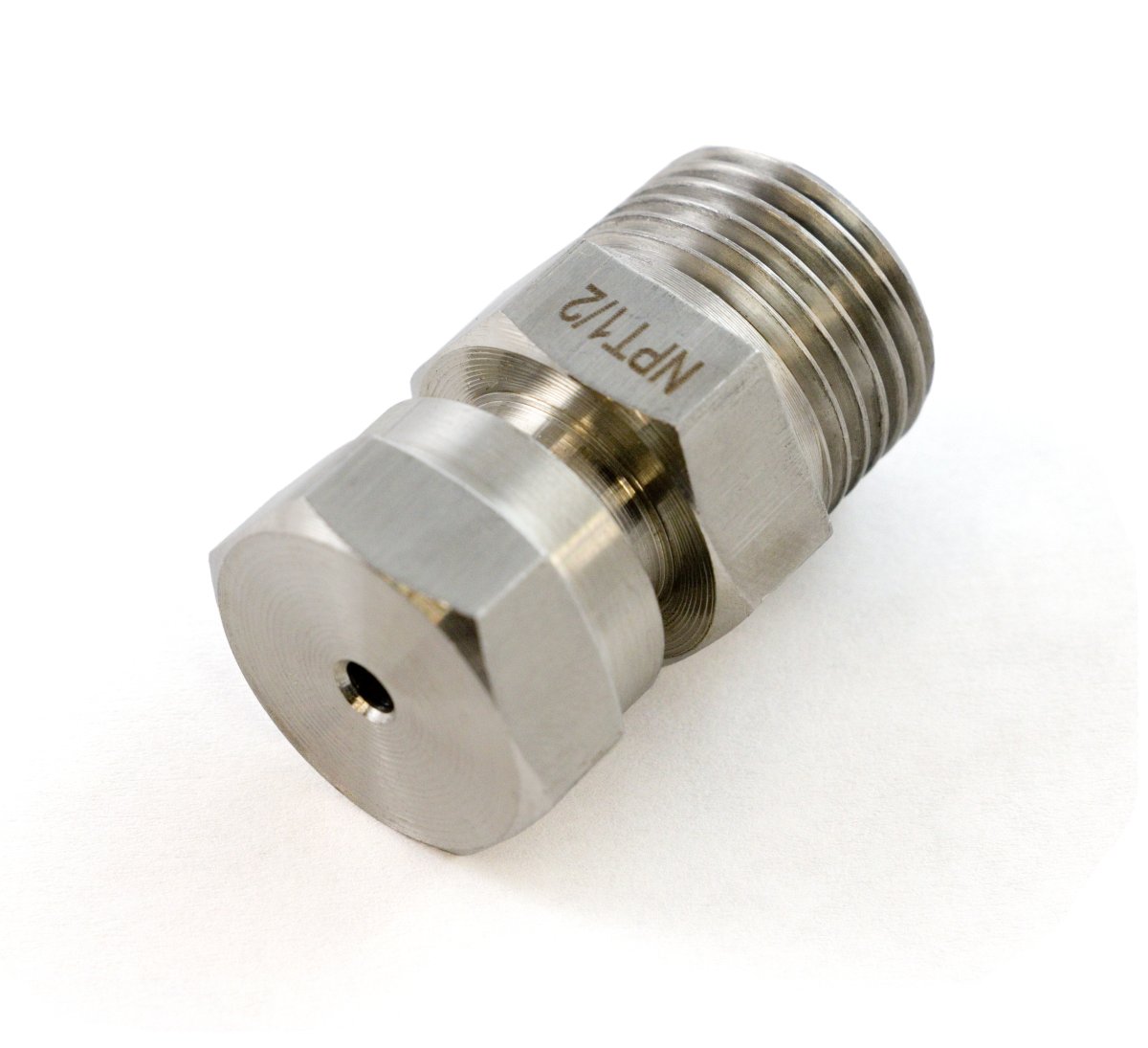

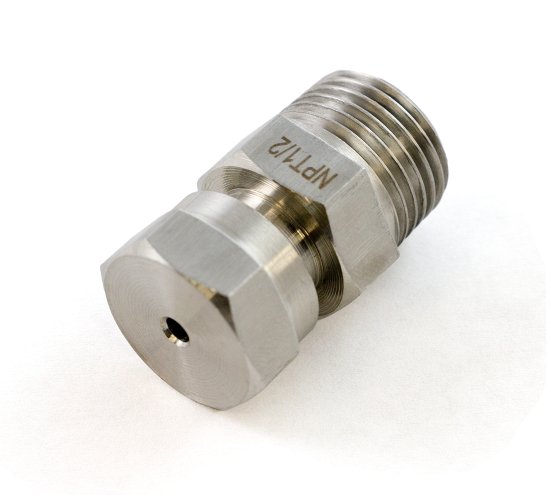

1/2" NPT Mounting Nut for Probe Thermocouples

ID: HDW4104_0

Use with a 3.2mm diameter probe type thermocouple to mount it into the side of an enclosure or container.

$10.00

Quantity Available: 149

Qty Price
5 $9.60
10 $9.20
25 $9.00
50 $8.90
100 $8.80
50+...

This stainless steel mounting nut is designed to be used with a probe thermocouple. Just slide the pieces on and tighten to attach. This fitting is designed to be used with our 3.2mm thermocouple and RTD probes. Best used with a 1/2" NPT bulkhead fitting. If you are mounting through a wall or panel without a matching NPT Female Thread, our metric fittings will be easier to use.

Features

  • Easily mount a 3.2mm probe through a panel
  • Front half of nut is machined with 1/2" NPT thread
  • Included mounting sleeve fixes probe in place when the two nut halves are fastened

Comes packaged with

Sleeve
  • One mounting sleeve

Product Specifications

Physical Properties
Material Stainless Steel
Screw Thread Size 1/2" NPT
Inner Diameter 3.2 mm
Customs Information
Canadian HS Export Code 7318.15.00
American HTS Import Code 7318.15.20.41
Country of Origin CN (China)

Probe Thermocouples and RTDs

Assembly

This mounting nut fits onto a probe thermocouple or RTD so it can securely mount through the side of a panel or enclosure. Here are the steps for assembling the pieces:

  • Slide the shorter nut onto the probe with the threaded end facing outward
  • Slide on the mounting sleeve
  • Slide the longer nut onto the probe with the long end facing outward
  • Move the pieces to the desired length on the probe and tighten the front and back nuts until secure

Here is a list of thermocouples and RTDs we sell that are compatible with this nut:

Product Temperature Sensor
Part Number Price Thermocouple Type Ambient Temperature Min Ambient Temperature Max
TMP4106_0
K-Type Probe Thermocouple 11cm
$16.00 K -40 °C 400 °C
TMP4107_0
K-Type Probe Thermocouple 20cm
$16.00 K -40 °C 400 °C
TMP4109_0
PT1000 4-Wire RTD 11cm
$40.00 -50 °C 500 °C
TMP4110_0
PT1000 4-Wire RTD 20cm
$40.00 -50 °C 500 °C
Product Physical Properties
Part Number Price Material Screw Thread Size Inner Diameter
HDW4100_0
1/8″ NPT Mounting Nut for Probe Thermocouples
$7.50 Stainless Steel 1/8" NPT 3.2 mm
HDW4101_0
M12 Mounting Nut for Probe Thermocouples
$9.00 Stainless Steel M12x1.5 3.2 mm
HDW4102_0
M8 Mounting Nut for Probe Thermocouples
$9.00 Stainless Steel M8x1.25 3.2 mm
HDW4103_0
1/4" NPT Mounting Nut for Probe Thermocouples
$9.50 Stainless Steel 1/4" NPT 3.2 mm
HDW4104_0
1/2" NPT Mounting Nut for Probe Thermocouples
$10.00 Stainless Steel 1/2" NPT 3.2 mm
